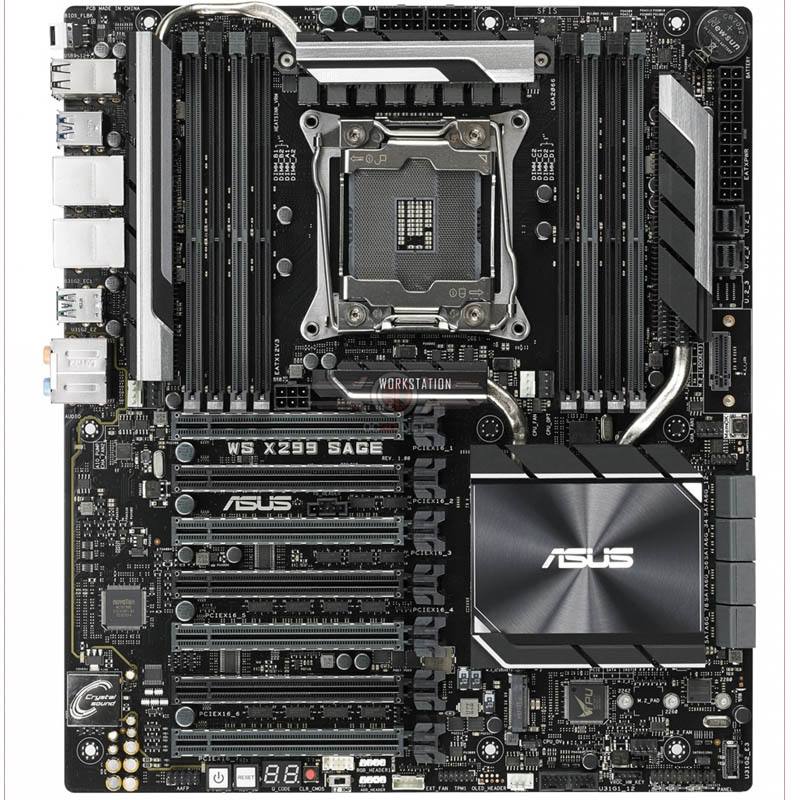

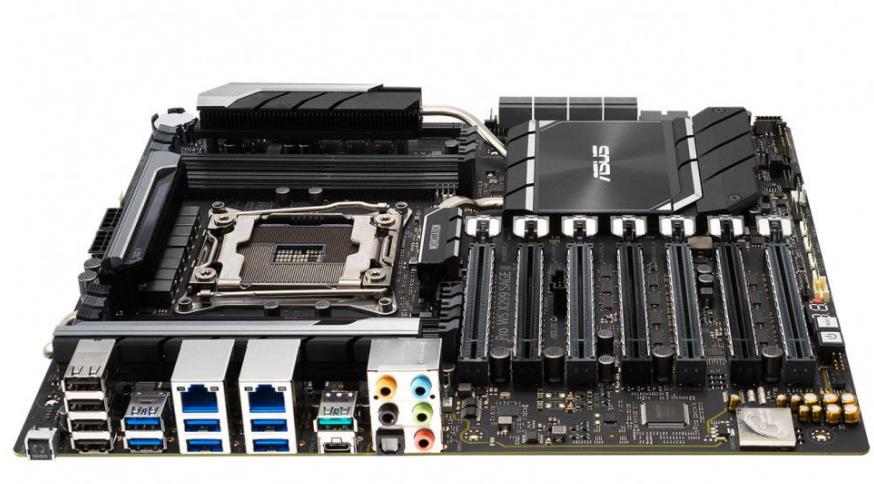

- WS X299 SAGE
Resourch: ENERGYUNI-IPC Platform AddDate: 2021-12-24 [back] Views:
- Quad-gpu display performance: The motherboard accommodates four dual-slot graphics cards and supports 4-way NVIDIA? SLI? and AMD CrossFireX? configurations.
- 5 re-optimization: one button can complete the whole system adjustment, for all kinds of workloads to provide excellent overclocking and intelligent cooling functions.
- Advanced cooling options: Fan, water pump and even integrated radiator can be controlled with Smart Fan Control 4 or UEFI.
- High efficiency VRM radiator: Metal fin array connected to large surface area via heat conduit to prevent performance degradation caused by heat
- ASUS Control Center Express remote management software provides small and medium enterprises with convenient, secure and cost-effective centralized IT management.

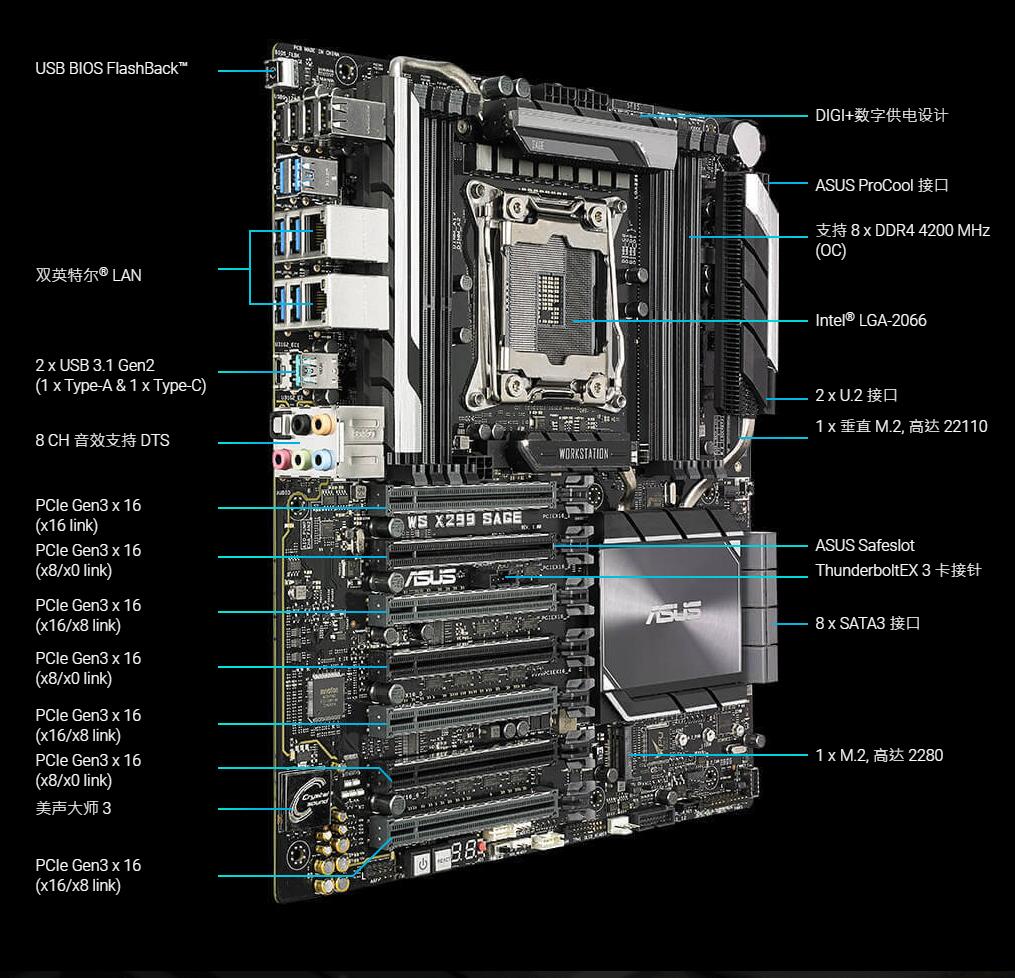

- Fast storage: up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Gen 2 and Type-A and Type-C ports, A front port.
Specifications
COU Supports Intel ? Socket 2066 Core ? X- series processors Support Intel ? Virtual RAID ON CPU (VROC) * Intel? Turbo Boost Max 3.0 is supported or not, depending on the processor type. * Visit www.asus.com for a list of processors supported. Chipset Supports Intel ? X299 Memory Intel ? Core ? X-Series Processors (above six cores) 8 x dual in-line memory modules (dimms) up to 256GB, DDR4 4200(overfrequency), 4133(overfrequency), 4000(overfrequency), 3600(overfrequency), 2933, 2666/2400, and 2133 MHz non-ecc, un-buffered dimms Intel ? Core ? X-Series Processor (Quad-core) 4 x dimms up to 64GB, DDR4 4200(overclocked), 4133(overclocked), 4000(overclocked), 3600(overclocked), 2666/2400 (overclocked), and 2133 MHz non-ecc, un-buffered memory Supports Intel? Extreme Memory Profile (XMP) technology * Support for Hyper DIMM is dependent on the physical characteristics of the CPU. * The actual memory frequency varies depending on the Intel CPU type and memory module. See the Intel website for more information about the memory type supported by each CPU. * Only on Select SKUs, With 1 DIMM per channel. Additional DIMM loading on any channel may impact maximum memory speed by one bin. Multiple graphics display technology Support NVIDIA? 4-way SLI? technology Support AMD 4-way CrossFireX technology Expansion slot 7 x PCIe 3.0/2.0 x16 expansion card slot (Single X16 or dual x16/ X16 or triple x16/x16/x16/x16 or quad x16/ X16 / X16 /x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) *2 Storage function (depending on shipment) Intel ? X299 Chipset: 1 x M.2 Socket 3 Socket for M key, 2242/2260/2280/22110 storage devices (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 Socket for M key, 2242/2260/2280 storage devices (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s ports 2 x U.2 Ports x 1 Supports Raid 0, 1, 5, and 10 Support Intel ? Fast Storage Technology Enterprise 5.1 (CPU RAID function requires the installation of X-series 6-core or above processors) Intel ? Intelligent Response technology is supported Support Intel ? Fast Storage Technology 15 Intel ? Upton ? memory technology Intel ? Virtual RAID (VROC) supports CPU RAID Network function Intel? I210-AT, 1 x GIGABit network adapter Intel? I219-LM, 1 x GIGABit NETWORK adapter Audio Realtek? ALC S1220A 7.1 channel high definition audio codec - Support: Audio interface Jack-detection, multi-streaming technology, front panel microphone audio connection port conversion (Jack-retasking) - Front and rear headphone output impedance sensing - High quality 120 dB stereo playback output (back line-out) and 113 dB (line-in) - Internal amp improves sound quality of headphones and speakers Audio features: - DTS Connect - DTS Headphone:X - Audio amplifier: Allows headphones and speakers to restore high quality sound - High quality Japanese audio capacitor: let you enjoy clear and high fidelity sound effects. - DEPOP noise reduction circuit: reduce the instant pop caused by startup Left and right sound channel independent wiring, two sides can output the same quality of sound. USB interface Realtek? ALC S1220A 7.1 channel high definition audio codec - Support: Audio interface Jack-detection, multi-streaming technology, front panel microphone audio connection port conversion (Jack-retasking) - Front and rear headphone output impedance sensing - High quality 120 dB stereo playback output (back line-out) and 113 dB (line-in) - Internal amp improves sound quality of headphones and speakers Audio features: - DTS Connect - DTS Headphone:X - Audio amplifier: Allows headphones and speakers to restore high quality sound - High quality Japanese audio capacitor: let you enjoy clear and high fidelity sound effects. - DEPOP noise reduction circuit: reduce the instant pop caused by startup Left and right sound channel independent wiring, two sides can output the same quality of sound. Other features Overclocking design - Asus PRO Clock II overclocking technology 5th generation dual intelligent processor, 5 times optimized - 5 Retuning keys integrate TPU, EPU, DIGI+ Digital power supply, Fan Xpert 4, and Turbo Core App Fan Xpert4 - Fan Xpert 4 uses the Fan automatic adjustment function and multiple thermistor options to optimize system heat dissipation control TPU Asus EPU intelligent energy saving processor: - EPU Asus digital power supply design: - Advanced 8-phase CPU digital power supply design - Advanced 2-phase memory digital power supply design Asus 5 Heavy Protection III: - Asus SafeSlot Core: High strength safety slot - Asus overvoltage protection - circuit protection power supply design - Stainless steel moisture-proof I/O interface - 3 times more durable than ordinary materials - Asus enhanced memory overcurrent protection - prevents short circuit damage - Asus ESD Protection - Enhanced ESD protection Asus features: - Ai Charger+ charging technology - AI Suite 3 - Crystal Sound 3 Asus EZ DIY: - Asus CrashFree BIOS - Asus EZ Flash - Multi-language BIOS - ASUS USB BIOS FlashBack? Asus Q - the Design: - Asus Q-LED (CPU, DRAM, VGA, Boot Device LED) - asus Q - shields - asus Q - Slot - asus Q - DIMM - asus Q - Code - asus Q - Connector AURA : - Aura RGB indicator pin - Aura programmable lamp strap pin Onboard m.2 and u.2 interfaces (new transfer technology enables m.2 and u.2 to achieve data transfer speeds up to 32Gb/s) Supports ASUS Control Center (ACC) remote management software Operating system Support Windows? 10 64-bit Backplane I/O port 2 x LAN (RJ45) port 6 x USB 3.1 Gen 1 (blue) 4 x USB 2.0 interface (one of which can be switched to USB BIOS FlashBack?) 1 x USB 3.2 Gen 2 (turquoise)Type-A, 1 x USB 3.2 Gen 2 (black)USB Type-C 1 x optical fiber S/PDIF digital audio output interface 1 x USB BIOS FlashBack? button 1 x 8 channel audio interface Internal I/O interface 1 x USB 3.1 Gen 2 Ports on the front panel 1 x USB 3.1 Gen 1 port Expandable 2 groups of external USB 3.1 Gen 1 ports 1 x AAFP Front audio pin 1 X Aura programmable lamp strap pin 1 x M.2 Socket 3 Socket for M key, 2242/2260/2280 storage devices (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 Socket for M key, 2242/2260/2280/22110 storage devices (PCIE 3.0 x 4 mode) 2 x U.2 Ports 1 x COM serial port connector 1 X Aura RGB Light with pin 8 x SATA 6Gb/s device connects to socket 1 x TPM pin 1 x CPU Fan power socket 2 X fan ports on the chassis 1 x CPU Optional fan port 1 x 24-PIN EATX Mainboard power socket 2 x 8-pin ATX 12V Mainboard power socket 1 x VROC_HW_Key 1 x Thunderbolt 1 x 6-pin ATX power port 1 x AIO_ Water pump port 1 X EZ XMP switch 1 x Power switch 1 x Restart switch 1 x 5-PIN EXT_Fan(expansion fan) slot 1 x Clear the CMOS button 1 x special port for water pump (4-PIN) 1 x Ports on the system panel 1 x thermal connector 1 x CPU_OV jumper 1 x MemOK! button 1 x M.2 Fan pins Accessories The manual The I/O panel Extended cable with addressable LED strips 8 x SATA 6.0Gb/s data cable 1 x vertical M.2 support kit 1 X COM data cable 1 x 3-way SLI bridge 1 x 4-way SLI bridge 1 x MOS Cooling Kit (Fan bracket and 40mm x 40mm fan) 1 x Random DVD 1 x M.2 Screws 1 x Q-Connector 1 x SLI HB bridge (2-channel -M) Dimensions CEB version structure 12 inches x 10.5 inches (30.5 cm x 26.7 cm) Weight Gift box (3 in 1) Net weight: 5.55 kg Gross weight: 8.06 kg Bulk (5 in 1) Net weight: 6.99 kg Gross weight: 9.37 kg Eenvironment Operating temperature: 10℃ ~ 35℃ Non-operating temperature: -40℃ ~ 70℃ Non-operating humidity: 20% ~ 90% (no condensation) Note *Intel? VROC is supported by RSTe and Intel? VROC_HW_key. VROC_HW_Key must be purchased separately. NVMe RAID types and functions depend on the installed Intel ? VROC_HW_key. *1 U.2 ports support only 44-Lane cpus. *2 Please refer to the Appendix block diagram in the manual for more details.
