ASUS MB

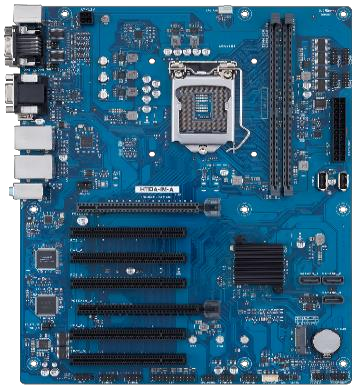

- H110A-IM-A
Resourch: ENERGYUNI-IPC Platform AddDate: 2021-11-16 [back] Views:
Features
- Two 288-pin U-DIMM up to 32GB DDR4 2400/2133 MHz
- Supports Dual displays: VGA/HDMI or VGA/DP
- 2*PCIe x16: 1 x PCIe 3.0/2.0 x16 slot (x16 mode), 1 x PCIe 2.0 x16 slot (@x4 mode, x4pin)
- 3-year warranty
Specifications
Processor System CPU Intel? Socket 1151 for 7th/6th Generation Core? i7/i5/i3/Pentium?/Celeron? Processors supports Intel? 14 nm CPU, support max. 65W CPU CHIPSET Intel? H110 chipset Memory Technology DDR4 2400/2133 MHz Max. 32GB Socket 2 x U-DIMM Display VGA 1, Supports up to Up to 1920 x 1200 @60Hz HDMI 1, Supports up to 4096 X 2160 @ 24Hz (colay with DP, optional) Dual Display VGA+HDMI(Default) VGA+DP(optional)
PCIe 1 x PCIe 3.0/2.0 x16 slot (x16 mode) Expansion Slot 1 x PCIe 2.0 x16 slot (@x4 mode, x4pin) PCI 5 x PCI M.2 1 x M.2 Socket 3 with M key, type 2242/2260/2280(SATA mode) Ethernet Speed 10/100/1000Mbps Controller 1 x Intel? i219V, 1 x Intel? I211AT Connector 2 x RJ-45 Audio Codec Realtek ALC887-VD2 High Definition Audio Connector Line-Out, Line-In, Mic in Storage SATA port 3 x SATA Gen 3.0, up to 6Gb/s Rear I/O VGA 1 HDMI 1 (colay with DP, optional) USB 3.2 Gen1 4 Ethernet 2 Serial Port 2(RS232/422/485) Audio jack 3 PS/2 1 x Keyboard Port, 1 x Mouse Port Internal Connector Serial Port 6 (RS232) USB2.0 2 x Header Support Additional 4 x USB2.0 Connectors 2 x stick socket CPU Fan Connector 1 (PWM Mode) Chassis Fan Header 1 (PWM+DC Mode) Chassis Intrusion Header 1 Front Panel Audio Connector (AAFP) 1 System Panel Header 1 Clear CMOS Jumper 1 Speaker Connector 1 LPC Debug Header 1 I2C Header 1 Parallel 1 GPIO Header 1 (8 Bit) AT/ATX Select Header 1 Power Connector 1 X 4-pin ATX Power Connector, 1 X 24-pin ATX Power Connector Watchdog Timer H/W YES Security TPM 1 x SPI TPM header Power Power Type AT/ATX mode Operating System Microsoft Windows Windows 7 (32/64bit) / Windows 10 (64bit ) / Win10 IoT Enterprise Linux Ubuntu, Red Hat Enterprise, Fedora Workstation, Open SUSE Environment Operating Temperature 0~60 ℃ Non-Operating Temperature -40~85 ℃ Relative Humidity 0%~85% Dimension Form Factor ATX, 305 x 244 mm Certification EMI & Safety CE, FCC
